F0193 Xenon - Compact Laminate Range

F0193 Xenon - Compact Laminate Range

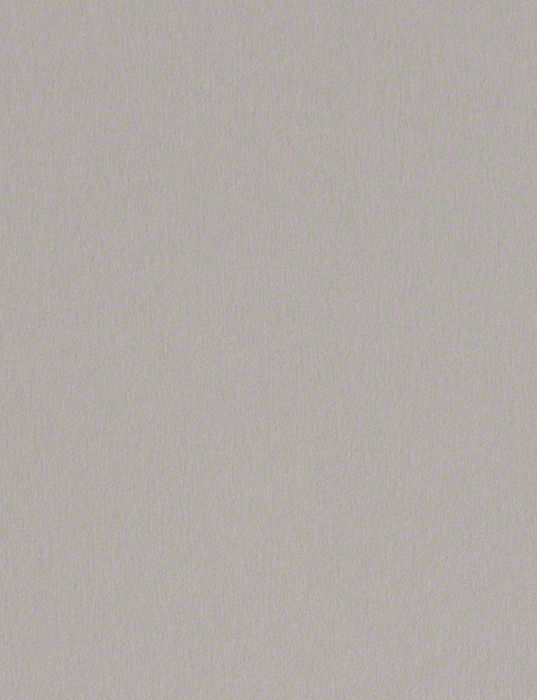

Formica 'Patterns' - F0193 Xenon



Formica® Collection Patterns. Patterns so authentic you will have to look twice. Authenticity and the return to essential and simple materials is one of the latest trends in interior designs.



Formica® Compact Grade is a versatile, high performance material. Its solid laminated core comprises multiple layers of resin-impregnated quality kraft papers with, generally, a decorative surface on both sides. This impressively strong and damage-resistant homogeneous laminate has excellent strength and dimensional stability.

Because of its inherent structural solidity, in thicknesses of 6mm and above Compact Grade laminate is self-supporting for most vertical applications. For horizontal applications the optimum thickness will depend on the distance between supports. This quality greatly simplifies and quickens fabrication.

Compact laminate comes in standard (CGS) grade with a black core and in flame-retardant (CGF) grade with a brown core. The laminate meets all the requirements of EN 438, ISO 4586, and the highest performance levels specified in BS 4965.



Please Note : 2mm - 3mm is single sided only and 4mm - 20mm is double sided

Also to be taken into consideration : If your planning to bond or have us bond this laminate to a substrate (Plywood, MDF etc.) We advise that you use a similar thickness for the balancing laminate. Obviously we will always follow your instructions, if you wish to use a thinner balancing laminate. But please understand we can't be held responsible if the boards start to bow or warp.



Formica® Compact Grade CGS Compact, Thick materials, of high performance for use in interior applications requiring high impact and moisture resistance.

Formica® Compact Grade CGF Compact, General Purpose, Flame Retardant high pressure decorative laminate. EN 13501 Euroclass ≥ 6 mm B-s1,d0 < 6 mm B-s2,d0 CGF grade is available with a brown core. The colour of the core may vary between manufacturing batches, this is due to the special manufacturing process and material properties and cannot be considered as a defect. Because of the specific properties of CGF grade, it is not suitable for use in wet areas.



MATTE 58 : Partnered with designs inspired by natural materials, Matte58 delivers a clean and modern look.



Minimum quantities may apply to certain thicknesses and a lead time from the factory maybe incurred. We will advise on receipt of your enquiry



SKU SKU240311
Please use the drop down menu to choose the finish / texture if the laminate is available in more than one option
Formica : Compact Laminate 2mm 2.5mm 3mm 4mm 6mm 8mm 10mm 12mm 13mm 16mm 18mm 20mm
3050mm x 1300mm (Standard Grade : CGS)
.
3050mm x 1300mm (Fire Retardant Grade : CGF - B-s2, dO )
.
3050mm x 1300mm (Fire Retardant Grade : CGF - B-s1, dO )

Formica : Compact Laminate
Board Size
Thickness
Instructions
Quantity
: *
: *
: *
